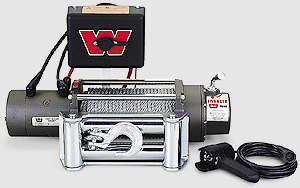

M5000 SELF-RECOVERY WINCH

This is our medium winch. But it's no weakling. Designed to be compact, its 4.8 hp Series Wound motor can still pull 6,000 lbs., making it ideal for smaller vehicles with big ideas.


M5000 SPECS/PART NUMBERS:

Part Numbers: PN 45880 (12V DC), PN 465052 (24V DC, CE), PN 37960 (12V, DC, CE Short Drum)

Rated line pull: 6000 lbs. (2720 kgs) single-line

Motor: 12V 4.8hp, Series Wound, 24V 1.7hp, Series Wound

Remote Control: Remote switch, 12' (3.7m.) lead

Gear train: 3-Stage Planetary

Gear ratio: 156:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 74 lbs. (34 kgs.)

Wire rope for PN 45880, 465052: 80', 5/16" diameter (24m, 8mm diameter)

Wire rope for PN 37960: 50', 5/16" diameter (15m, 8mm diameter)

Replacement wire rope for PN 45880: PN 15276

Replacement wire rope for PN 465052: PN 38310

Replacement wire rope for PN 37960: PN 38309

Fairlead for PN 45880, PN 26505: Roller

Fairlead for PN 37960: Hawse

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat Nuts/bolts PN 39625

CE winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Power Interrupt Kit, Safety Hook and Thimble.

12V DC PERFORMANCE SPECS:

Line Pull
Lbs.(Kgs.)

0
2000(910)
4000(1810)
6000(2720)

Line Speed
Ft./min.(M/min.)

48.5(14.8)
23.7(7.22)
12.9(3.93)
10.0(3.05)

Motor
Current

85 amps
175 amps
360 amps
465 amps

Pull by layer:
layer/Lbs(Kgs.)

1/6000(2722)
2/5460(2477)
3/5000(2268)
4/4670(2118)

24V DC PERFORMANCE SPECS:

Line Pull
Lbs.(Kgs.)

0
2000(910)
4000(1810)
6000(2720)

Line Speed
Ft./min.(M/min.)

41.2(12.6)
12(3.66)
8.92(2.72)
5.83(1.78)

Motor
Current

52 amps
127 amps
201 amps
275 amps

Pull by layer:
layer/Lbs (Kgs.)

1/6000(2722)
2/5460(2477)
3/5000(2268)
4/4670(2118)

Above performance specs are based on first layer of drum

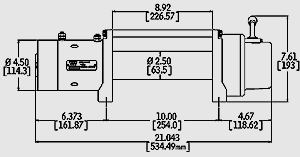

Winch Dimensions: 21.04" L. x 6.3" D. x 7.61" H
(534mm L. x 160mm D. x 193mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
