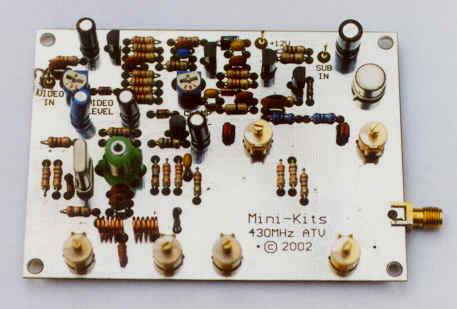

High level Amplitude Modulated video transmitter for the 70cm Amateur band, built on a 71x100mm PC board. The design uses a sync stretcher & high level modulation to overcome the linearity requirements when transmitting TV signals, & produces up to 100mW, ( +20dBm ) output. The kit only requires 2 coils to be wound, & uses printed tuned inductors on the PC board for the output amplifier stages so it is easy to tune up. The complete Kit includes a professional plated PC board, & all onboard components, requires miscellaneous hardware & Crystal to complete. For Audio add the Audio subcarrier Kit, Order No EME75
This Design uses as Small
number of Surface Mount Components
